M8 Waterproof Connector Y Type Circular 4pins Female Adapter Y - Type Splitter Connector
Connector description
The M8 connector system provides a solution that safely and reliably ensures the communication in industrial environments. Designed to IEC-61076-2-101, this connector system also finds applications outside of its traditional industries where a compact, reliable connection system with environmental protection is required.
The M8 is a common connector at the field level, although to date only for the transmission of signals, a wide range of M8 connector variations available in IP67/IP68 cable mount and panel mount options used in demanding industrial application
Product Details
1. M8 IP68 Waterproof Thread 90 degree Male to Female T / Y Type Splitter Adapter Power Circular Connector
2. Supply T Type & Y Type Adapter for mating Panel Mount Recetacle
3. Field Wireable Plug & Molding Cable
4. High degree of protection IP67, safe to use on site
5. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life
6. Anti-vibration locking screw design 4. Support samples, retail and bulk orders
Electrical data
Gender: male and female
Type: Sensor connector
Rated voltage: 30 V AC / 30 V DC
Body shell:PA + GF Housing / Metal shell
Terminal: Screw joint
Material: Brass
Insulation resistance: ≥ 10 GΩ
Connector:DC Power Jack Plug Connector
Mechanical operation :> 100 Mating cycles
Rated voltage :60 V
Rated impulse voltage :1500 V
Material
Flammability rating according to UL 94: HB
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Material of grip body: TPU, hardly inflammable, self-extinguishing
Material, knurls: Zinc die-cast, nickel-plated
Sealing material: NBR
| Serie | M12 Adapter |
| Coding | A / B Code |
| Connection Type | Y Type Adapter |
| Number of Contacts | 4 pins |
| Gender | Female |
| Orientation | Straight |
| Rated Current | 4A |
| Operating Voltage | 250V |
| Temperature Range | -25~ + 80C |
| IP Rating | IP67 |

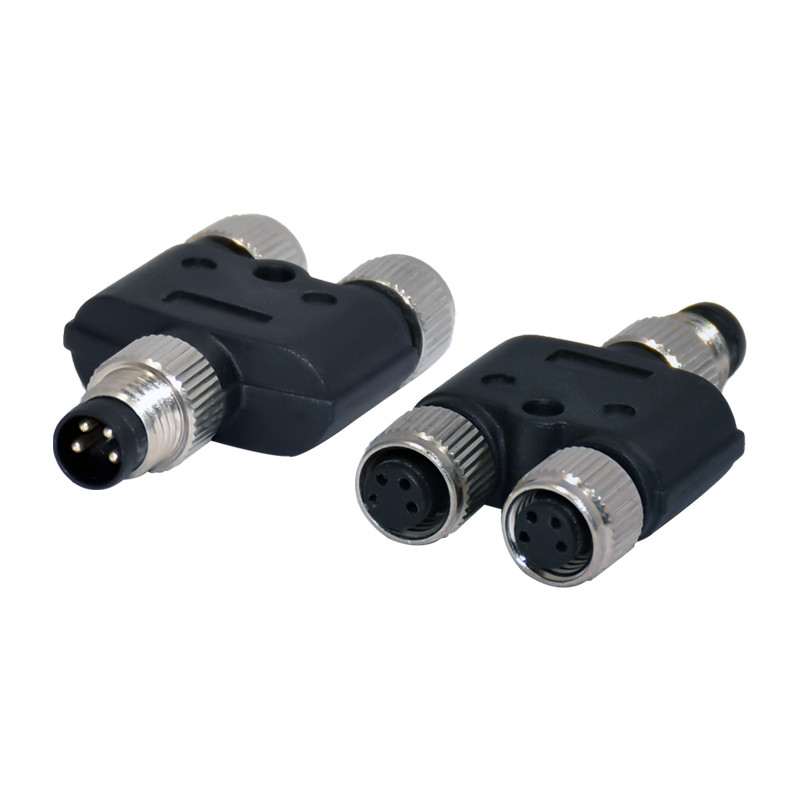

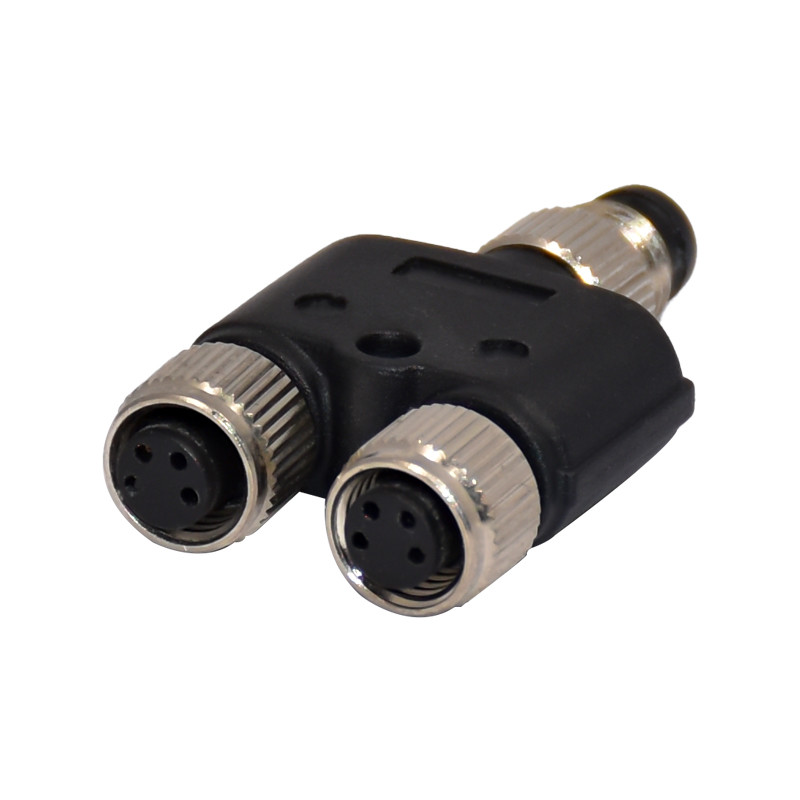

Product photos
Application
FAQ
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q2. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details
Q3: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q4: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q5: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q6: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q7: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
Q9: How to contact us?
A: contact us with email/whatsapp/wechat
