Brand Name : RIGOAL
Model Number : m8 connector
Certification : CE,ROHS
Place of Origin : Shen zhen,China
MOQ : 100
Price : negotiable
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 100000
Delivery Time : 14
Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Product name : 4 Pin Round Connector
Pins : 4p, 3P
Connector type : Circular Connectors
Protection level : IP67 Waterproof Connector
Type : Circular connector
Certificate : CE,ROHS
Degree of production : ip67,ip68
Operating Temperatur : -25℃~85 ℃
M8 4pin 4p Male Waterproof Ip67 Sensor Aviation Plastic Field Assembly Wireable Attachable Round Circular Connector
Assembly Instriction
Technical Date | ||||||||
Pin No. | 3 | 4 | 5 | 6 | 8 | |||
Coding: | A | A | A | A | A | |||
Pin for reference | ||||||||
Standard | IEC61076-2-101 | |||||||
Rated current | 4A | 4A | 4A | 2A | 1A | |||
Rated voltage | 250V | 250V | 60V | 30V | 30V | |||
Operating Temperatur | -25℃~85 ℃ | |||||||
Degree of protection | IP67/IP68 | |||||||
Connector locking system | Screw | |||||||
Mechanical operation | >500 mating cycles | |||||||
Contact resistance | ≤10mΩ | |||||||
Material of connector | CuZn | |||||||
Contact plating | Au(gold plating) | |||||||
Material of connector body | PA |
![]() |

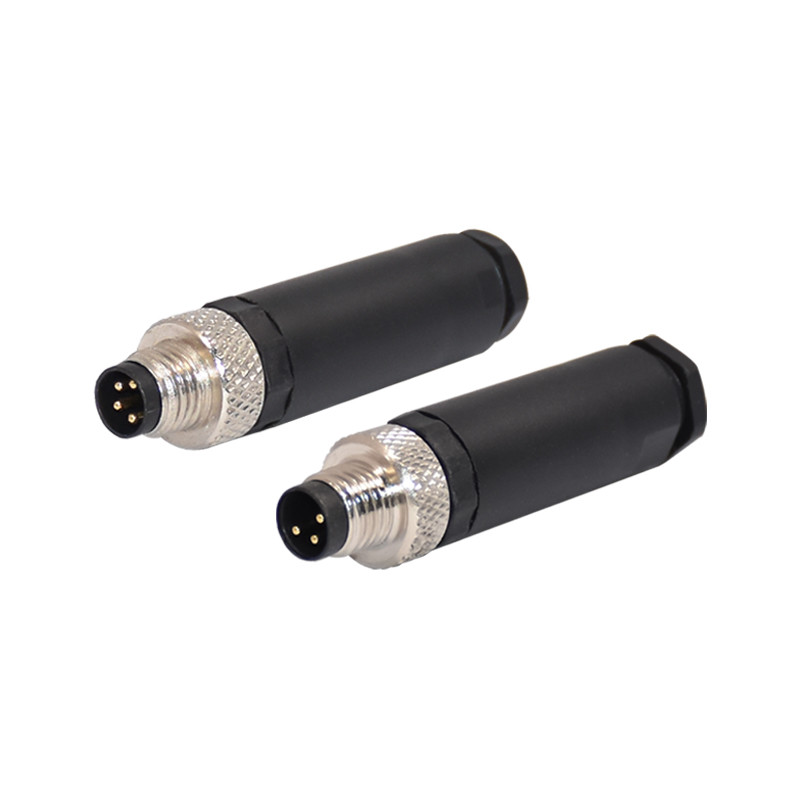

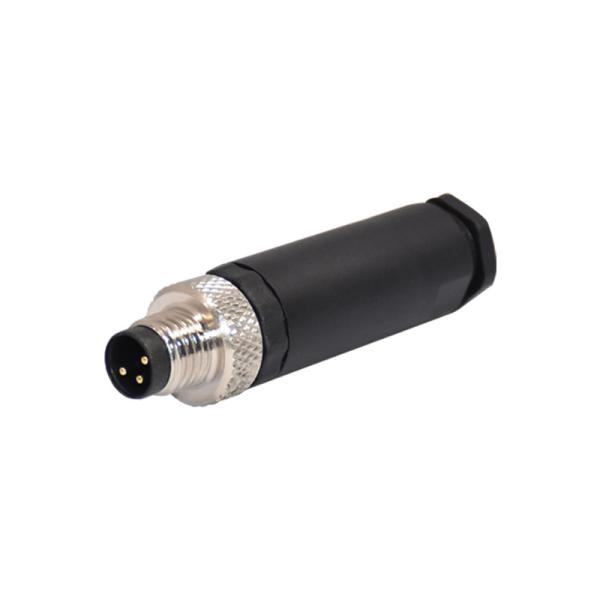

4P Male M8 Waterproof Connector Plastic Field Assembly Wireable Attachable Connector Images |
