5mm Cable M8 Male Screw Assembly Connector Plastic 6 8 Pin 90 Degree

Brand Name : RIGOAL

Model Number : n8 assembly connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 10

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Application : Power

Gender : Male

Pins : 3 4 5 6 8pin

IP degree : ip67/68

Core material : PA66

Current Rating : 3A

Voltage rating : 60V

Contact material : Gold-plated Copper

Metal material : copper

Cable OD : 3.5~5mm

Contact Now

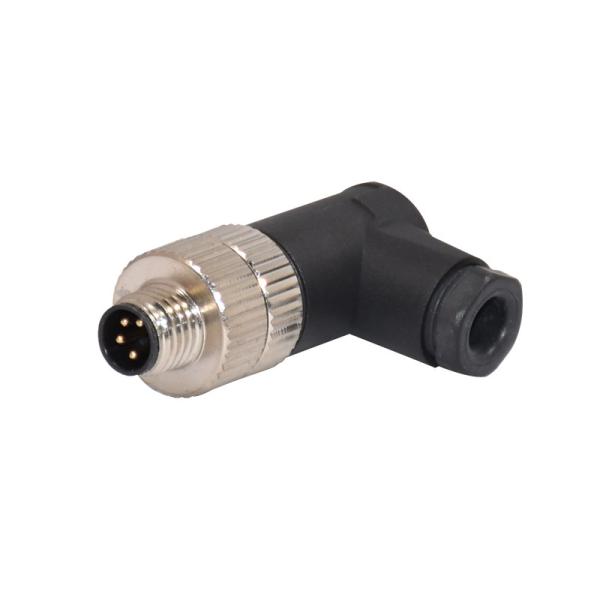

M8 Male 90degree Plastic Screw Assembly Connector ,A/B/D Coded 3pin 4pin 5pin 6pin 8pin

5mm Cable M8 Male Screw Assembly Connector Plastic 6 8 Pin 90 Degree5mm Cable M8 Male Screw Assembly Connector Plastic 6 8 Pin 90 Degree5mm Cable M8 Male Screw Assembly Connector Plastic 6 8 Pin 90 Degree

M8 connector provides a pratical economy and flexiable solution for mechanical engineering for small or special industrial field, and meets the requirments of rapid and seamless connectivity within a limited space.

They can reach excellent envoironmental protection at IP65~IP67 in locked condition, these products offer with 3~8pins contacts.

There are many kind of types, such as molding type and panel type, assembly type, splitter type, terminal type and so on.

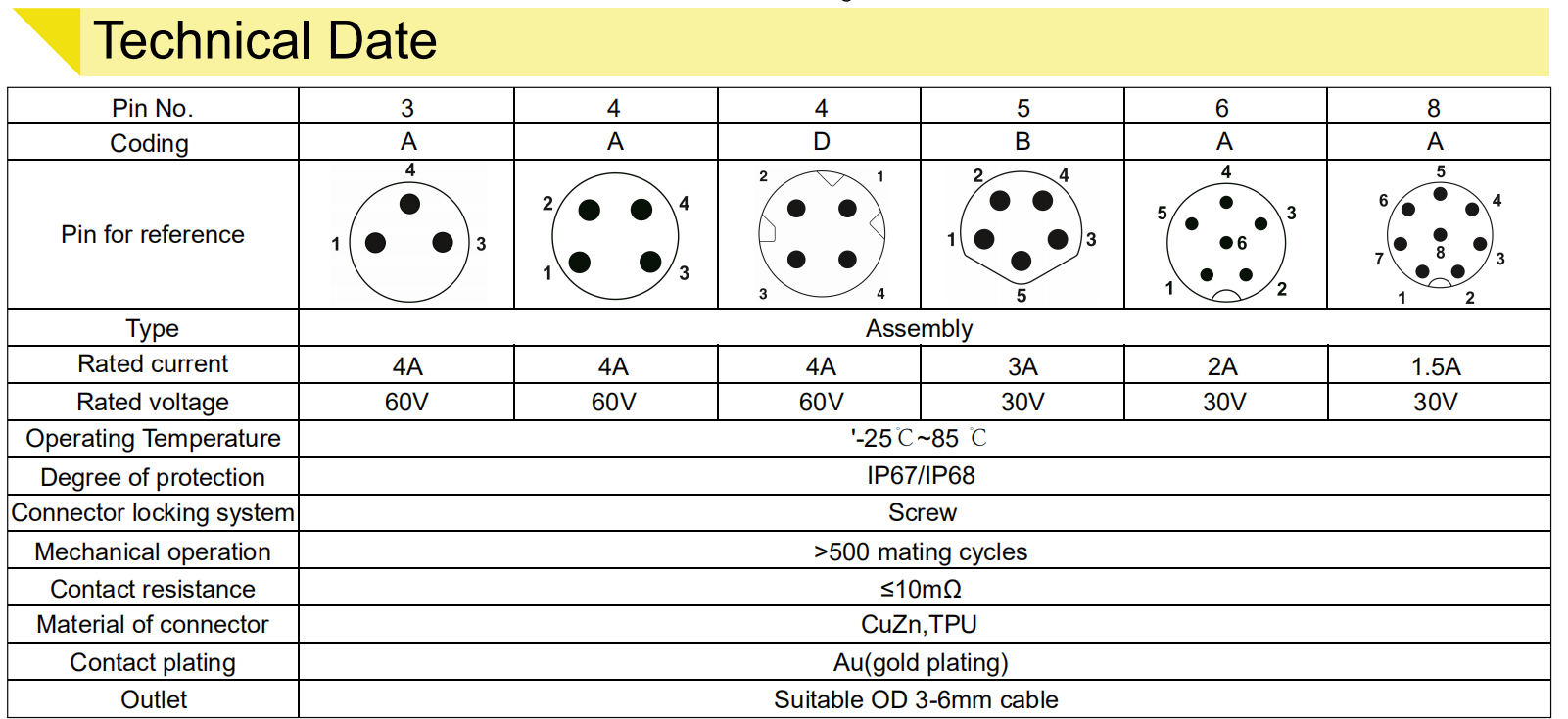

Series M8
Coding A/B
Connection Type Panel Mount
Number of Contacts 3/4/5/6/8 Pin
Gender Male/Female
Orientation Straight/Angled
Termination Soldering/PCB
Rated Current 3A/1A
Operating Voltage 60V/30V
Temperature Range -25°C ~ + 80°C
IP Rating IP67
