IP65 Panel Mount Connector GX aviation connector Solder Termination

Name: IP65 Panel Mount Connector GX aviation connector Solder Termination
Brand: Rigoal
Price: 1 USD

IP65 Panel Mount Connector GX aviation connector Solder Termination Manufactures

Brand Name : Rigoal

Model Number : GX

Certification : CE ， Rohs , IP68

Place of Origin : Guangdong, China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 30work day

Packaging Details : 46x30x30

Application : Audio & Video

Pin : 2 3 4 5 6 7 8 9 10 11 12 pin

Rated current(A) : 5/7/10/12/15/20

Contact material : Brass with gold plated

The shell material : Zinc Nickel-plated/Chrome-plated

Contact resistance : 1/1.5/3/4/5

Termination : Solder

Type : ADAPTER, Panel mount/Assembly/Molded cable

Contact Now

IP65 2 3 4 5 6 7 8 9 10 11 12 pin plug socket panel mount assembly molded cable GX series connector

GX12

Number of contact	2	3	4	5	6	7
Contact diameter	φ1.2	φ1.2	φ1.2	φ1.2	φ1.2	φ1.2
Rated current(A)	5	5	5	5	5	5
Rated voltage(AC,V)1min	200	125	125	125	125	125
Test voltage(AC,V)1min	1500	1500	1500	1500	1500	1500
Contact resistance(mΩ)	5	5	5	5	5	5
Insulation resistance	2000	2000	2000	2000	2000	2000
Diameter	φ0.8	φ0.8	φ0.8	φ0.8	φ0.8	φ0.8

GX16

Number of contact	2	3	4	5	6	7	8	9	10
Contact diameter	φ2.5	φ2.5	φ2.5	φ2.0	φ1.2	φ1.2	φ1.2	φ1.2	φ1.2
Rated current(A)	7	7	7	7	5	5	5	5	5
Rated voltage(AC,V)	220	220	125	125	125	125	125	125	125
Test voltage(AC,V)1min	1500	1500	1500	1500	1500	1500	1500	1500	1500
Contact resistance(mΩ)	3	3	3	4	5	5	5	5	5
Insulation resistance(mΩ)	2000	2000	2000	2000	2000	2000	2000	2000	2000
Diameter	φ1.4	φ1.4	φ1.4	φ1.2	φ0.8	φ0.8	φ0.8	φ0.8	φ0.8

GX19M

Number of contact	2	3	4	5	6	7	8	9	10
Contact diameter	φ3	φ3	φ3	φ3	φ2	φ2	φ1.5	φ1.5	φ1.5
Rated current(A)	10	7	7	7	5	5	5	5	5
Rated voltage(AC,V)	250	250	200	200	200	200	200	200	200
Test voltage(AC,V)1min	1500	1500	1500	1000	1000	1000	1000	1000	1000
Contact resistance(mΩ)	1	1	1	1.5	5	5	5	5	5
Insulation resistance(mΩ)	2000	2000	2000	2000	2000	2000	2000	2000	2000
Diameter	φ2.0	φ2.0	φ2.0	φ1.2	φ0.8	φ0.8	φ0.8	φ0.8	φ0.8

GX30M

Number of contact	2	3	4	5	6	7	8	10
Contact diameter	φ3.5	φ3.5	φ3.5	φ3.5	φ3.5	φ3.5	φ3.0	φ2.5
Rated current(A)	20	20	20	15	15	15	10	7
Rated voltage(AC,V)	500	500	500	400	400	400	250	250
Test voltage(AC,V)1min	1500	1500	1500	1000	1000	1000	1000	1000
Contact resistance(mΩ)	5	5	5	5	5	5	5	5
Insulation resistance(mΩ)	2000	2000	2000	2000	2000	2000	2000	2000
Diameter	φ0.5	φ0.5	φ0.5	φ0.5	φ0.5	φ0.5	φ0.5	φ0.5

Product introduction

GX16 series waterproof connector circular connectors socket


Coupling: Threaded
The shell material:Zinc Nickel-plated/Chrome-plated 3.Insulator material: Bakelite
Contact material: Brass with gold plated

IP65 Panel Mount Connector GX aviation connector Solder Termination

GX12/GX16/GX19/GX30



Termination: Solder
Mating cycle: 500 cycles
Temperature: -25°C~85°C
IP protection class: IP65



. GX series waterproof have Assembly and panel mount available connector .
 . GX series circular aviation connector can be applied in microphone,keyboard aviation, navigation, computer, communications,
 petroleum
 exploration, navigation, anti-theft devices and so on.
 Coding: A
 Gender:Female and Male
 Cable length: can be customized

Product Tags:

Rigoal Panel Mount Connector

IP65 GX Panel Mount Connector

Solder Termination GX aviation connector

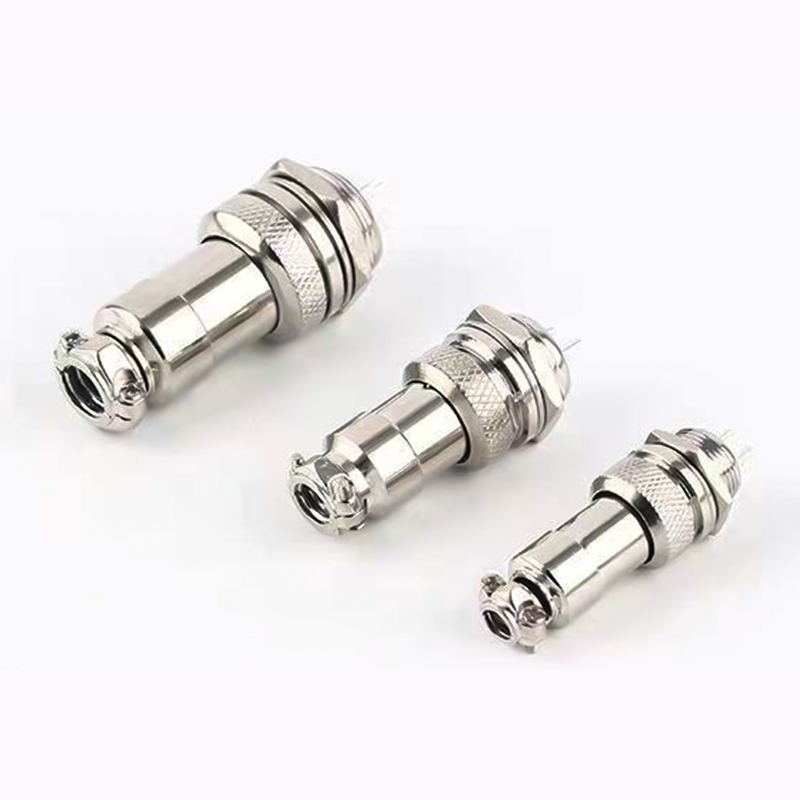

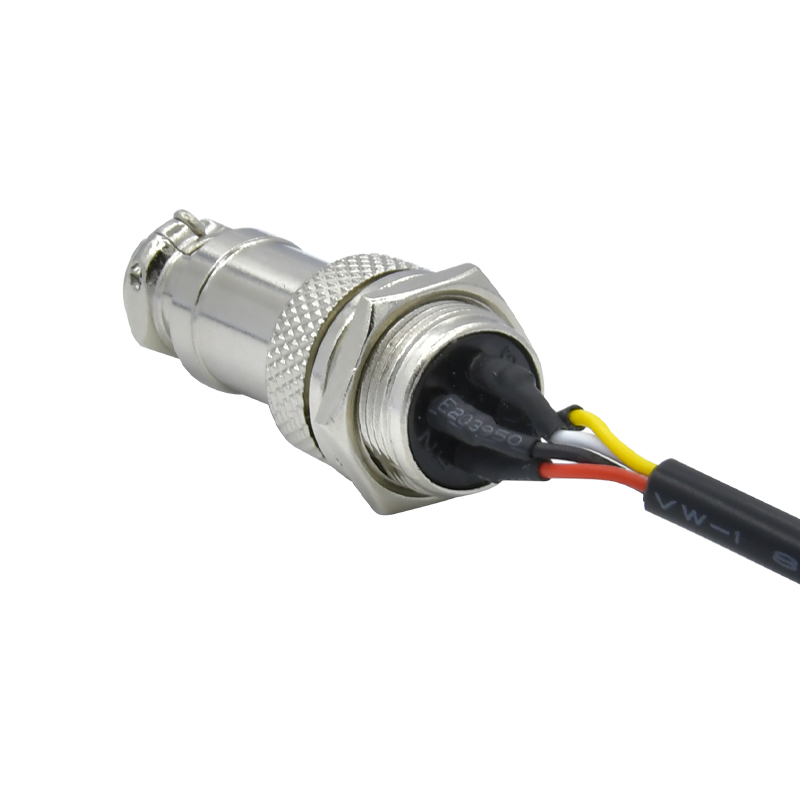

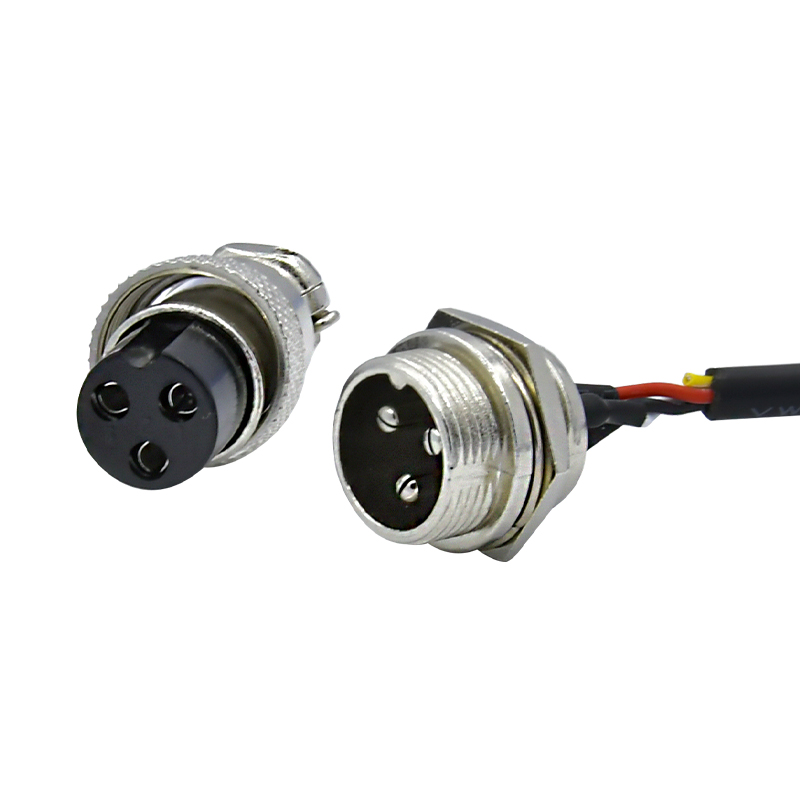

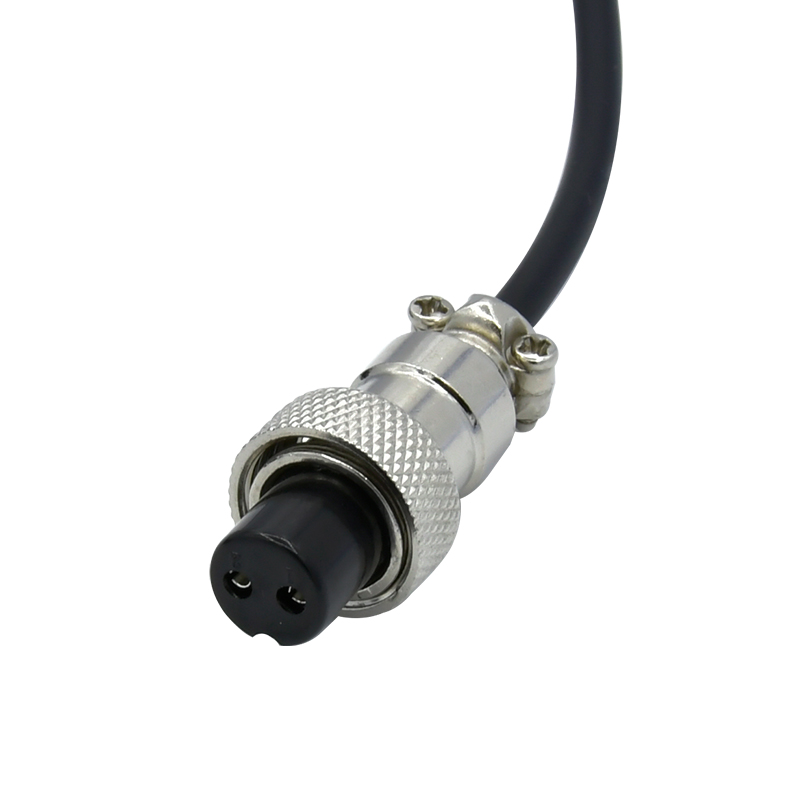

IP65 Panel Mount Connector GX aviation connector Solder Termination Images
