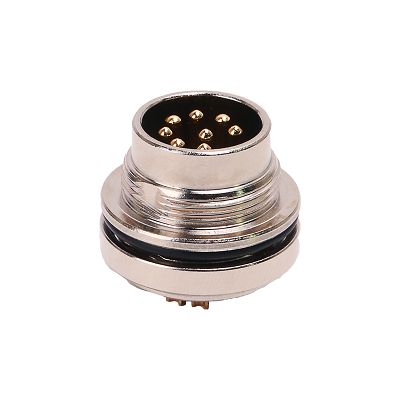

M16 male rear panel mount connector

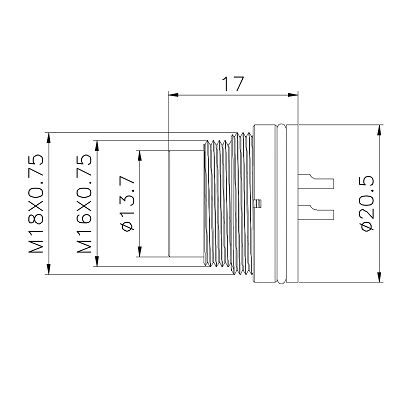

Product diagram
Available Description:
Stainless steel screw is available
IP67/IP68, RoHS, REACH, UL certificate
Generally Description:
Connector Series: M16
Standard: IEC 61076-2-101
Coding: A
Pins: 2/ 3/ 4/5/6/7/8/9-----24pins
Gender:Male
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP65/IP67
Ambient Temperature: -30°C~+90°C
Material:
Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC
Electrical data:
Rated Current: 3A
Rated Voltage: 250V
Contact Resistance: ≤10mΩ
Insulation Resistance: ≥100MΩ

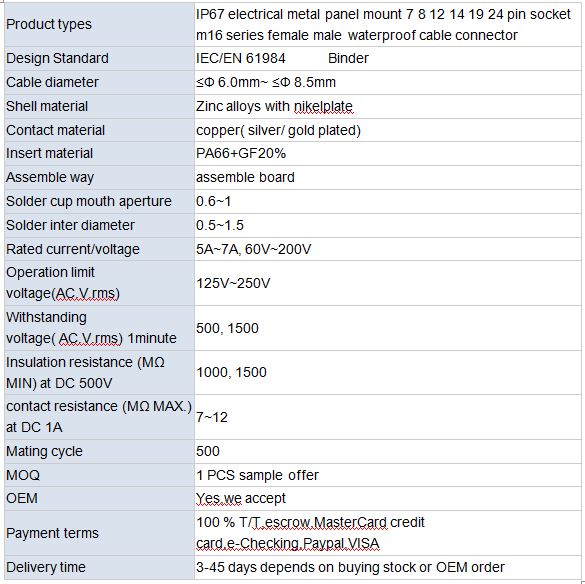

Product parameter
Certifications
Package&Shipping:
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Our Services
Customers want
1. High quality and competitive price
2. Stable delivery and excellent service
3. Reliable warranty and after-sales service
We provide
1. 100% quality assurance, all broke parts can be guaranteed within 30 days after received.
2. According to customer requirement, provide 10 years warranty.
3. Repairs parts are available within 10years; EOL products will be always informed to you.
4. Supply free LOGO to the surface of over-molded connectors upon customers' requirement.
FAQ
Q1.Are you a manufacturer?
A1: Yes, we are a experienced manufacturer with our own R&D, Production and in-house lab.
Q2.May I buy samples with you?
A2:Yes! You could place sample order to test our superior quality and services.
Q3.Could you produce according to samples?
A3: Yes, we can produce base on either customer provided sample or technical drawings. We also provide customers with OEM or ODM cable and connector design assistance.
Q4.How about price?
A4: Generally we offer step prices according to customer’s order size.
Q5.How to place an order?
A5: Drop a message online or send to us an email about your demand and order quantity. Our sales will contact you very soon.
Q6.What is your terms of payment?
A6: T/T 100% in advance for the first several orders and negotiable afterwards. We'll show customers the photos of the products and packaging before shipment.
Q7.What is the packaging ?
A7: Our standard packaging is carton with PE bags. Customized packaging demand is welcome as well.
Q8.How do you ship the products?
A8: It depends, we generally ship the goods by airway express, such as DHL, TNT, UPS, FEDEX or by the forwarder that customer appointed.
