TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male

Product Categories
Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

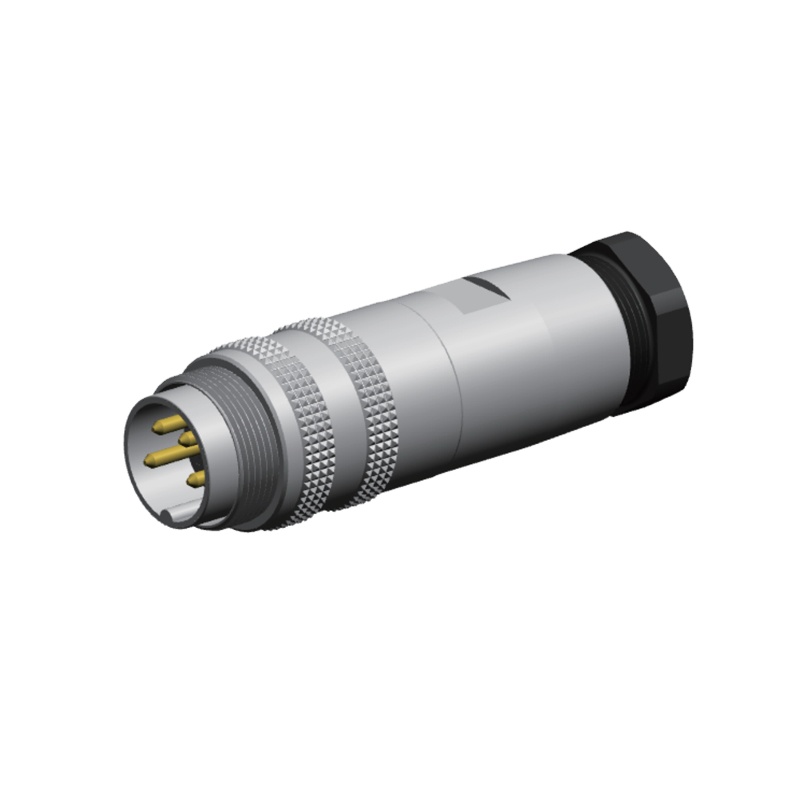

TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male

  • 1
  • 2

Brand Name : Rigoal

Model Number : Straight metal type

Certification : CE ， Rohs , IP68

Place of Origin : China ShenZhen

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 30work day

Packaging Details : 46x30x30

Orientation : Straight

IP rating : IP67

Type : automation, Sensor Connector

Ambient temperatu : -25C ~ + 85°C

Standard : IEC 61076-2-105

Mating endurance : ≥500

Connector insert : PA66+30%GF

Insulation resistance : ≥100

Contact resistance : ≤5

Contact material : copper(gold-plated)

Contact Now

Description
Degree of protection IP67
2 3 4 5 5A 6 7 8 12 14 16 19 24 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance
The cable material have PVC or PUR,length according to customer demand

Electrical Data
Rated voltage:60V
Insulation resistance:100MΩ
Rated current::7A
Contact resistance:≤5mΩ
Ambient temperature:-25°C~+85°C

Connector Specification
Polarity:2pin 3pins, 4pins,5pins,6pins,8pins 12pin 14pin 16pin 19pin 24pin
Overmold:Transparent TPU
Contacts:Brass with gold plated
Insert:TPU+GF
Coupling nut/screw:Brass with nickel plated

TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male
TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male
TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male
TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male
Product Introduction
Product Name:

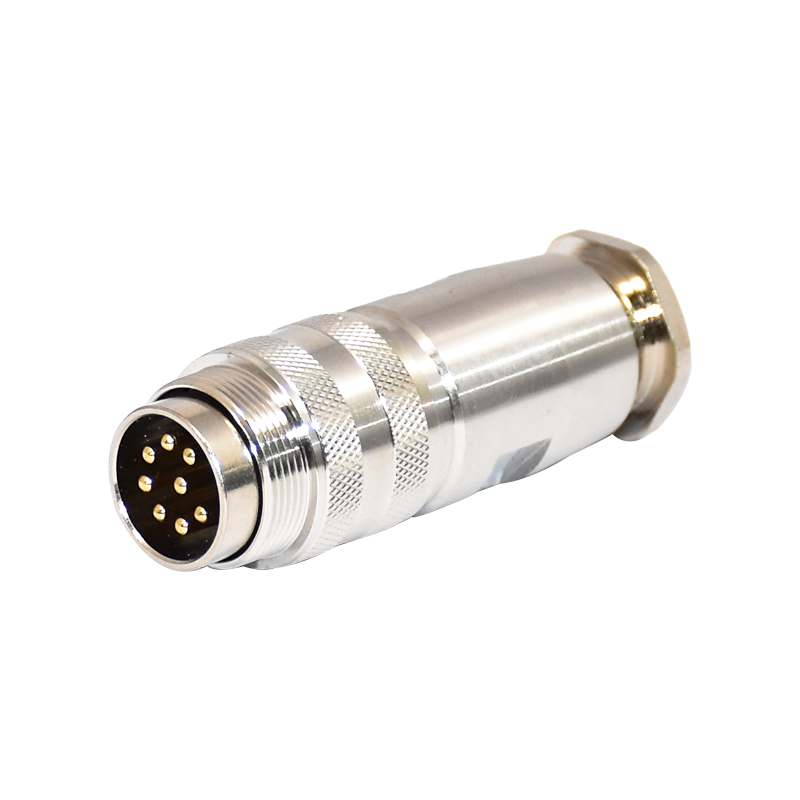

Waterproof IP67 4 8 core Connector Female Male M16 metal assembled plug
model number:M16-M04
series:M16 Connector
pin number:4pin 8pin
waterproof:IP67
TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male
TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male
TPU GF 7A PA66 M16 Circular Connector REACH 60V Metal Solder Male
