CuZn TPU ISO M8 M12 Waterproof Panel Mount Socket Connector Female Straight 20cm Pigtail

Name: CuZn TPU ISO M8 M12 Waterproof Panel Mount Socket Connector Female Straight 20cm Pigtail
Brand: RIGOAL
Price: 1 USD

CuZn TPU ISO M8 M12 Waterproof Panel Mount Socket Connector Female Straight 20cm Pigtail Manufactures

Brand Name : RIGOAL

Model Number : M8 panel mount cable

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Application : Factory automation and process control

Product name : M8 panel mount connector

Termination : Soldering

Rated voltage : 60V

Coupling nut/screw : Brass,nickel-plated,CNC

Rated temperature : -25℃~80℃

Rated current : 3A

Contact carrier : TPU+GF

Contact Now

M8 Front Mount Panel Mount Socket Connector Female Straight 4 Pin M8 Panel Mount With Pigtail 20cm

Product Description

CuZn TPU ISO M8 M12 Waterproof Panel Mount Socket Connector Female Straight 20cm Pigtail


The M8 panel receptacles are ideal for compact and space-sensitive industrial applications. CABLEFORCE M8 panel connectors are
 available with solder termination and PCB panel assembly type, with rear mounting and front mounting.


Insulation resistance:≥100 MΩ
 Contact resistance:≤5mΩImpulse voltage:1500V
 O-ring:FKM/SiliconPollution degree:3
 Sealing:Epoxy resin

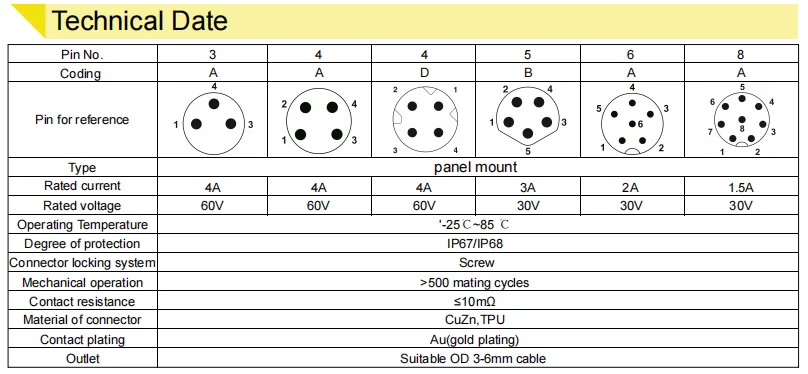

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	RIGOAL
Model Number	M8 panel mount pcb
Type	DC type connector

Product Tags:

CuZn TPU Panel Mount Socket Connector

ISO M8 Panel Mount Socket Connector

20cm Pigtail M8 Circular Connector

CuZn TPU ISO M8 M12 Waterproof Panel Mount Socket Connector Female Straight 20cm Pigtail Images
