B Code M12 Waterproof Connector 4p Male Front Ip67 PA66 1.5A For Automotive

Name: B Code M12 Waterproof Connector 4p Male Front Ip67 PA66 15A For Automotive
Brand: RIGOAL
Price: 1 USD

B Code M12 Waterproof Connector 4p Male Front Ip67 PA66 1.5A For Automotive Manufactures

Brand Name : RIGOAL

Model Number : M12 MOUNT CONNECTOR

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

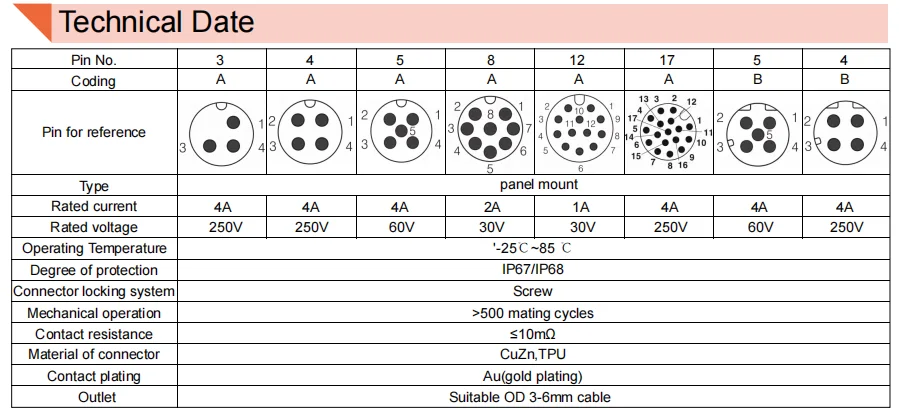

Temperature Range : 20℃~+80℃

Insert Material : PA66

Contact Material : Copper Contact Gold Plating Contact

Rated Current : 4A/2A/1.5A

cable diameter : ≤4mm~≤8.0mm

contact material : copper(silverplated/gold)

termination : crimping/solder

Pins : 4p, 5P, 12p, 3P, 8P, 2P

Contact Now

M12 Solder B Code 4pin Male Front Panel Mount Industrial Connector Ip67 For Automotive

Product Description

B Code M12 Waterproof Connector 4p Male Front Ip67 PA66 1.5A For Automotive

Overview :

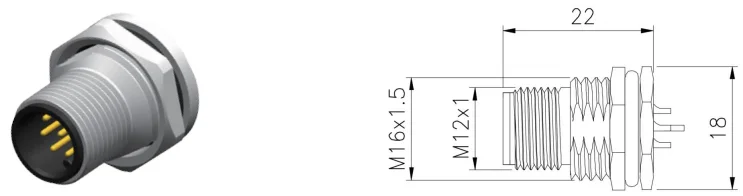

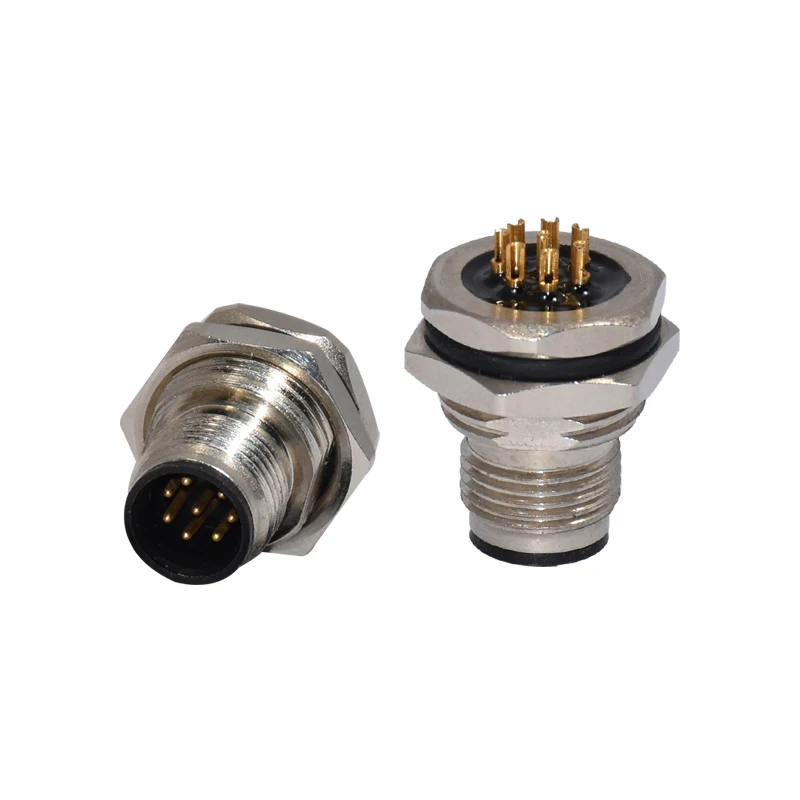

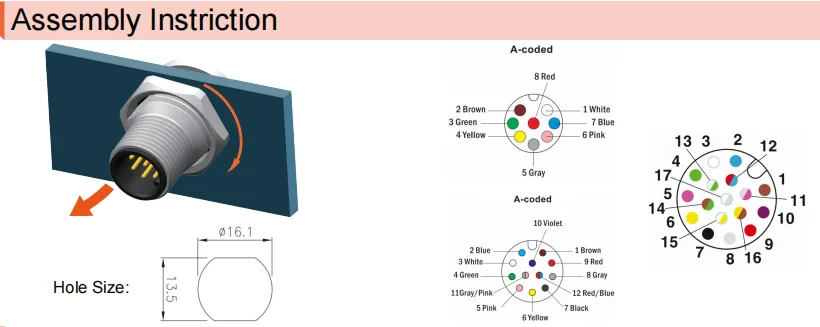

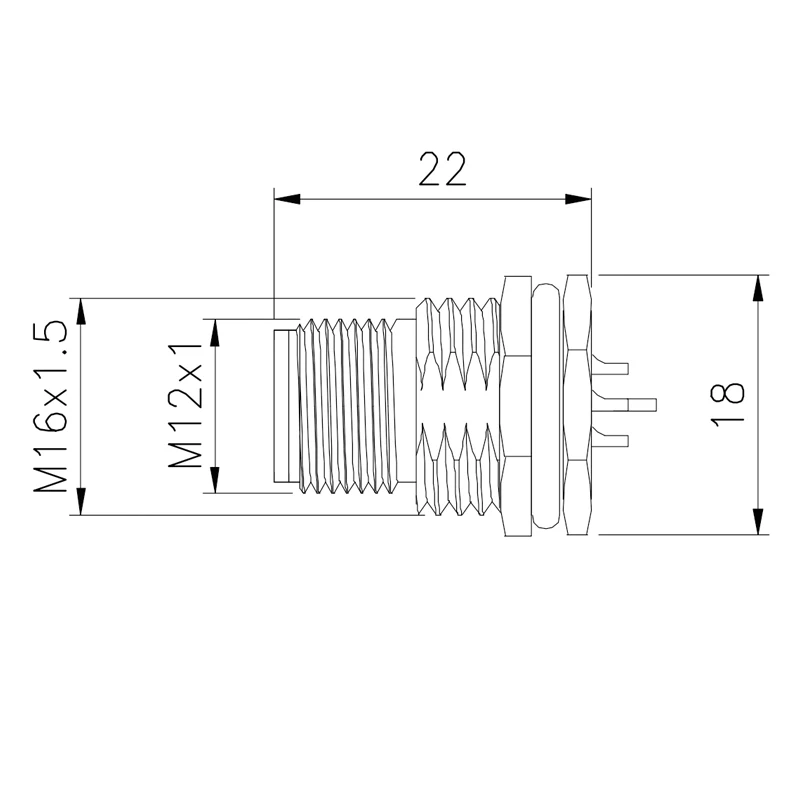

M12 flange seat is an M12 connector socket, used for panel, cabinet front (back) and other fixed installation socket.The
 plug shell is brass/cast zinc plated nickel, the pin body is PA, the contact surface is Au, the working temperature is -25℃~85℃,
 the product needle number is 4, 5, 8 or core number is 4 holes, 5 holes, 8 holes, the protection grade has reached IP67.

Features :

M12 socket waterproof performance is good, efficient and fast connection, save the user wiring time again, widely used
 in industrial machinery and equipment, transmission and transmission control system, all kinds of industrial sensors, testing
 instruments and meters, electronic instruments, household appliances, electromechanical, kitchen and other equipment signal
 transmission and current transmission.

FAQ:
1. Q: How do I order?A: First, please tell us the model and quantity you need.In the second step, we will make a PI for you to confirm the order details.Step 3: After we confirm, we can arrange the payment;Step four, finally we deliver the goods within the stipulated time.
2. When is the delivery date?A: Lead time - Sample order: 1-3 days after receipt of full payment.- Inventory orders: 3-7 days after receipt of full payment -OEM orders: 12-20 days after receipt of deposit
3.1 year warranty for all kinds of products: If you find defective parts for the first time, we will give you a new part free of charge in the next order.

Packing & Delivery
1.Our general packing:erery pcs in one samll PE bag,then add the label. many pcs(100 or 200 etc)in one with waterproof PE bag contons.samll size:12mm*12mm. Carton size:40*30*30cm 2.According to customer request.

Product Tags:

B Code M12 Waterproof Connector

Ip67 PA66 M12 Waterproof Connector

1.5A M12 Panel Mount Connector

B Code M12 Waterproof Connector 4p Male Front Ip67 PA66 1.5A For Automotive Images
