Rigoal PVC PUR M12 Waterproof Connector Male Female Battery Welding M12 Wires Connector

Name: Rigoal PVC PUR M12 Waterproof Connector Male Female Battery Welding M12 Wires Connector
Brand: Rigoal
Price: 1 USD

Rigoal PVC PUR M12 Waterproof Connector Male Female Battery Welding M12 Wires Connector Manufactures

Brand Name : Rigoal

Model Number : m12 cables connectors

Certification : ISO9001;CE;ROHS;IP68

Place of Origin : Shenzhen China

MOQ : 100 pieces

Price : negotiable

Payment Terms : TT, D/A, L/C,Western Union, D/P, Paypal,D/P, MoneyGram

Supply Ability : 100 000 per month

Delivery Time : 3 days to 15 days;According to buyer's requirement

Packaging Details : Put them in one transparent bag, lable it, then put in a carton

Coded : A B C D X T S L M T Y coded

Pins : 3 4 5 8 12 17 pins

Gender : Female / Male

Degree of protection : IP68/IP67

Shape : 90 degree / 180 degree

Rated current : 1A for 12 pin/2A for 8 pin/4A for 3 4 5 17 pin

Rated voltage : 30V for 8 12 pin/60V for 5 pin/250V for 3 4 17 pin

Type : Shielded / Unshielded

Material of connector : PVC / PUR

Color : Customizable

Contact Now

Circular m12 connectors are manufactured in accordance with international standards,

its A B D X coded and 3pin 4pin 5pin 8pin 12pin 17pin can meet the needs of most customer.

According to the international standard, m12 connectors are applied in various fields,with high signal integrity and excellent performance,it's one of the main electronic components for connecting signals.

Different combination and colors can be chosen

Choose one with or without LED

* M12 single ended cable plug(M12 male/female cable connector)

* M12 double ended cables plugs(M12 male/female to male/female cable connector)

* Straight/Angle m12 cable connector

Rigoal PVC PUR M12 Waterproof Connector Male Female Battery Welding M12 Wires Connector

Shielded and unshielded are available
Shielded cables can block interference from signals,but thet cost a bit more

Product Structure detailed
Bright and full,firm connection,stable conductivity

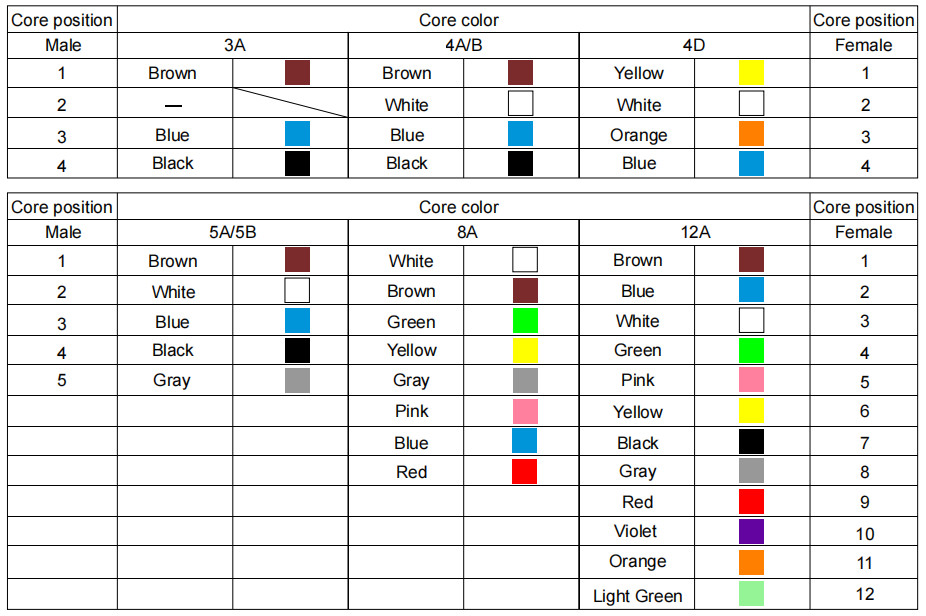

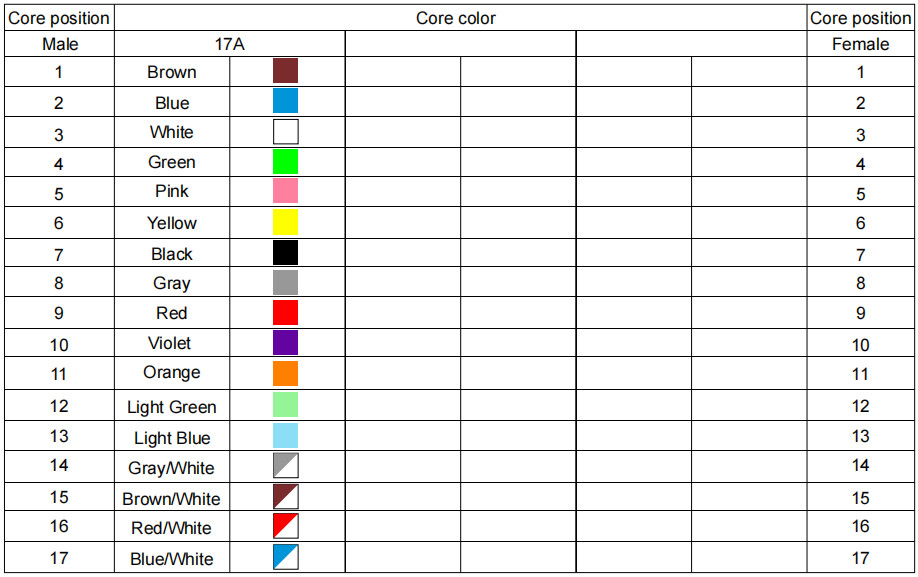

Wiring definition of m12 connector

Usually we use PVC or PUR material for the cable:
PVC(Polyvinyl chloride) material has good mechanical properties and excellent dielectric properties, but it is not stable to light and heat. Its physical and mechanical properties will decline rapidly when it is above 100 ℃ or exposed to sunlight for a long time.
PUR(Polyurethane) material has excellent oil resistance, good toughness, wear resistance, cold resistance (low temperature resistance), water resistance, aging resistance, acid and alkali resistance, weather resistance, long service life, UV resistance, energy release and many other excellent functions, and is suitable for oil contamination, extremely harsh low temperature environment. But its price is also much more expensive than PVC


Packing & Shipping:

Packing

1.Put each m12 connector in one transparent bag, lable it, then put in a carton
2.OEM package is available
3.According to customer requirement

Shipping
If the quantity is not big or you need it urgently,we advise you to ship them by Express shch as DHL,FEDEX,UPS,TNT etc.
If your quantity is large,we advise you to use Sea shipping or Air shipping.

The packaging pictures are for reference only,and the specific packaging depends on the product style and quantity.

Rigoal PVC PUR M12 Waterproof Connector Male Female Battery Welding M12 Wires Connector

Customer evaluation

Rigoal PVC PUR M12 Waterproof Connector Male Female Battery Welding M12 Wires Connector

FAQ

Q1: Are you a factory?
A: Yes, you are welcome to visit our factory.

Q2: What can you buy from us?
M5,M8,M9,M12,M16,M23,M12 to rj45,USB,D-SUB, L20,RJ45, AISG,7/8'',SP series,solenoid valve etc.

Q3: How long is the delivery time?
A: Usually within 2-15 days. The specific situation will be determined according to the reserve of factory materials and the busy degree of the factory

Q4: How can you guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

Q5: How about the payment terms?
A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q6:How to purchase M12 connectors from Rigoal?
A:Please send us the specification or drawing for the items with quantity and performance requirements.

What we need to know for the common type:

1.Which code

2.How many pins

3.Male/female

4.Straight/angle

5.Shielded/unshielded

6.How long

7.PVC/PUR

8.Quantity

Q7:why choose us?
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus.

The M12 connector is a component that electronic engineering professionals frequent access when working, and it is also an indispensable component in electronic products. If you are interested in it, please send an inquiry to us. Rigoal Connector is committed to being your best connector supplier.
