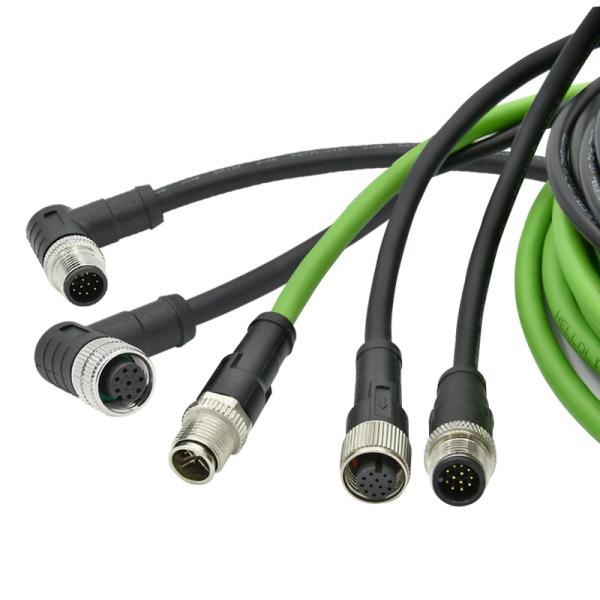

2 - 17 Pin M12 Waterproof Sensor Connector Male Female 1/2/5M PVC PUR Molding Cable

Product Categories
Shenzhen Rigoal Connector Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2 - 17 Pin M12 Waterproof Sensor Connector Male Female 1/2/5M PVC PUR Molding Cable

  • 1
  • 2
  • 3

Brand Name : Rigoal

Model Number : M12 Molding Cable

Certification : CE,TUV,Rohs

Place of Origin : China

MOQ : 1000

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs per week

Delivery Time : 7-10days

Packaging Details : PE bag and Cartons

Product name : Waterproof M12 Circular Connector Cable

Color : Black or OEM color

Code : A / B / C / D / K / L / X / S / T Code

Number of contacts : 2-17 Pin

Rated Voltage : 30-250V

Rated Current : 1-4A

Wire gauge (AWG) : 22 24 26 AWG

Orientation : Straight / Right Angle

Temperature Range : -25℃~85 ℃

Degree Of Protection : IP67/IP68

Contact Now

Product Description

The M12 connectors is the connector of 12mm metric size with thread locking mechanism, which is one of the most commonly used in factory automation, sensor/actuator boxes, field-bus and industrial controllers.

Quick Details:

* Series: M12 Cable Connector

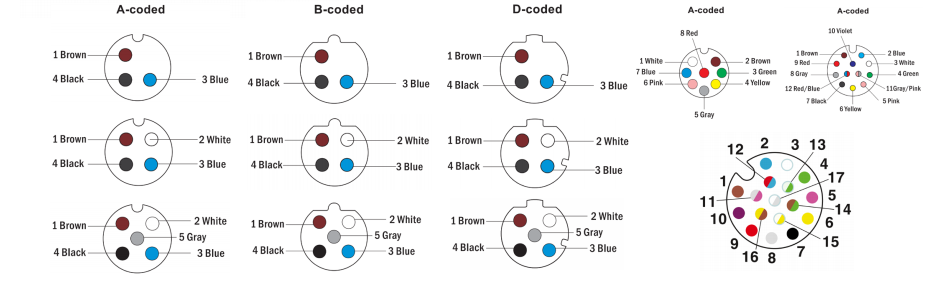

* Pin Number: A code: 3, 4, 5, 8, 12, 17Pin are acceptable

* Gender: Male or Female

* PUR/PVC cable materials are available according to customers' need

* Termination Type: Molding type

* Feature: Water and Dustproof to IP67 when mated with compatile connector

* Cable color, length and material all can be customized in our company

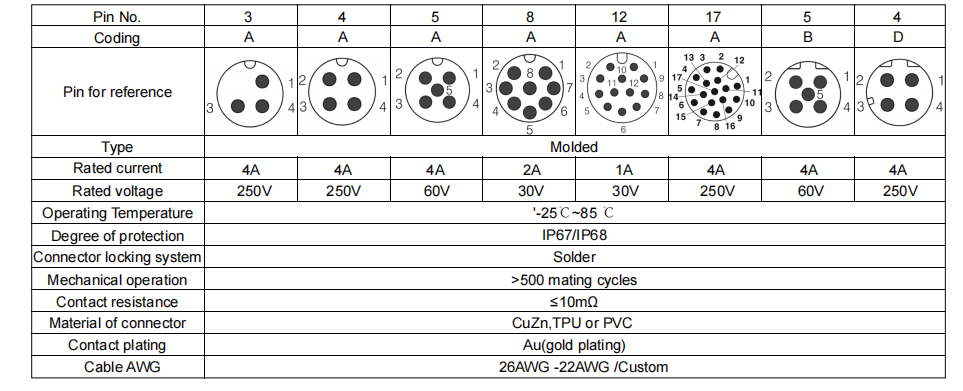

Technical Overview Data:
M12 Cable Connector
Product name
M12 Molding Cable
Number of Contacts
3,4,5,8,12,17 Cores
Color
Black/Custom
Termination
Solder
Rated Current
1-4A
Rated Voltage
30V-250V
Contact Material
Brass/Glod-plated
Insulator Material
PA+GF
Molding Material
PVC/PUR
Durability
> 500 cycles
Certificate
CE/ISO9001/RoHS
Protection level
IP68/IP67 Waterproof
Temperature Range
-25°C~85°C
Contact resistance
≤5 MΩ
Pls feel free to contact us for custom service!!
2 - 17 Pin M12 Waterproof Sensor Connector Male Female 1/2/5M PVC PUR Molding Cable

2 - 17 Pin M12 Waterproof Sensor Connector Male Female 1/2/5M PVC PUR Molding Cable

2 - 17 Pin M12 Waterproof Sensor Connector Male Female 1/2/5M PVC PUR Molding Cable

2 - 17 Pin M12 Waterproof Sensor Connector Male Female 1/2/5M PVC PUR Molding Cable
2 - 17 Pin M12 Waterproof Sensor Connector Male Female 1/2/5M PVC PUR Molding Cable
2 - 17 Pin M12 Waterproof Sensor Connector Male Female 1/2/5M PVC PUR Molding Cable
